Introduction:
With the development of electrical industry, more and more low voltage distribution box be used outside.Then it need the material strong, waterproof, big room to install more MCBs and components, then LWTT appear in the market according to the demands.

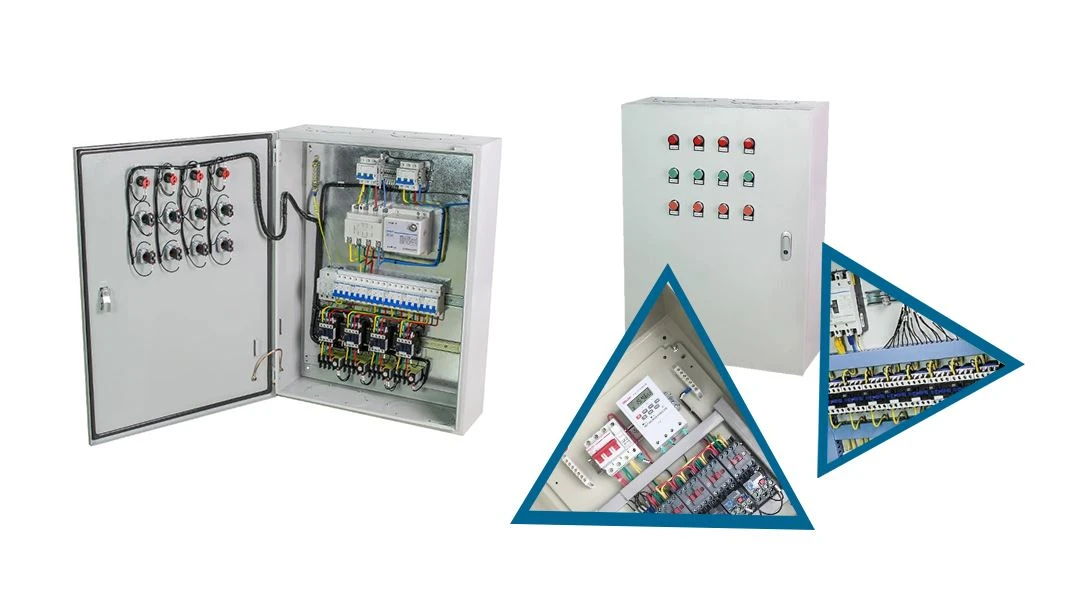

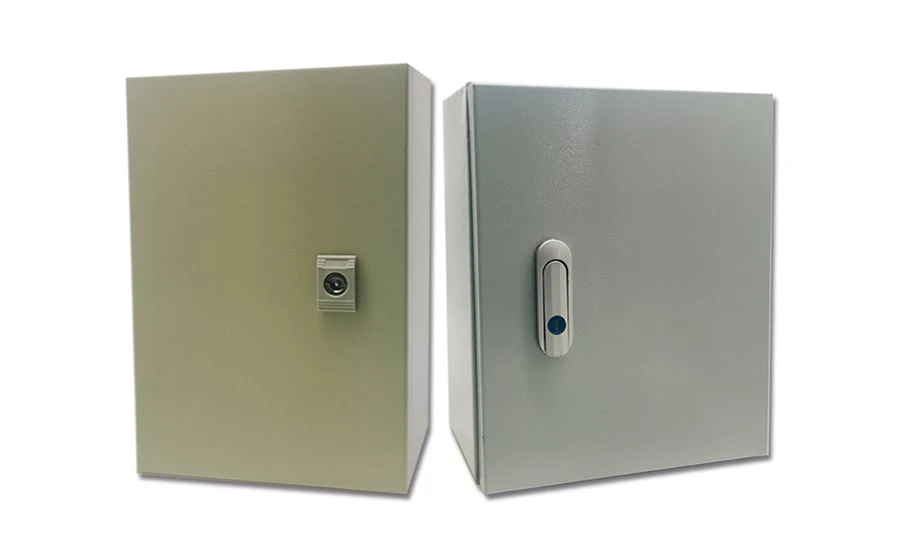

Metal distribution box is made of high-quality cold rolled steel, designed to be assembled with various electrical components according to different control function requirement.
It with Base board, orange color. Box body is galvanized steel, Gasket make the protetion grade to IP65. It has lock, 2 kinds lock available.
Technical Specifications:
Standard:IEC60529
Approval:CE
Material:Cold rolled plate/Galvanized sheet
Locking system with 3mm double bar key
Package with hardware for earth connection and screws to mount all components.
Body and door:1.5mm steel sheet
Mounting plate:2.5mm steel sheet
Case and door:RAL 7032 mat finish
Mounting plate:RAL 2004 smooth finish
Protection degree:IP65
Mounting plate
Gland plate and gasket
Accessories Introduction
Base board
Thickness:1.2-2.0mm (standard value)
High quality cold rolled steel
Powder coating/painting
Lock of the box
Material: plastic or aluminum alloy optional
Design: according to customer’s request
