Weatherproof Distribution Box

Introduction

Weatherproof Distribution Box is made of high-quality cold roll steel, designed to be assembled with various electrical componets according to different control function requirement. Due to the use of high-quality materials, it has the characteristics of high strength, corrosion resistance and good toughness. Our product has good waterproof performance and can be used with confidence in some harsh environments.

Features

Weatherproof Distribution Box is simple in structure and easy to install, and even beginners can easily install it through our installation guide. In terms of performance, it has strong anti-aging and ultraviolet resistance, as well as relatively excellent impact resistance and corrosion resistance. This box has a wide range of environmental temperature adaptability and can meet the requirements of various environments. It can be used in docks, parks, construction sites, ships and so on.

Technical Specifications

Examples Of Application

Installation Instructions

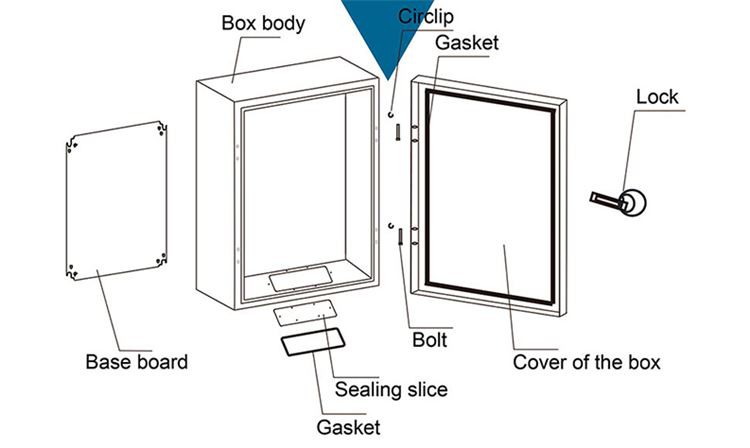

Accessories Introduction

Model	Product	SIZE(MM) HEIGHT*WIDTH*DEPTH	THICKNESS(MM) DOOR*BODY*MP
LWTT-01		200X200X150	1.0*1.0*1.2
LWTT-02		250X200X150	1.0*1.0*1.2
LWTT-03		300X200X150	1.0*1.0*1.2
LWTT-04		300X200X200	1.0*1.0*1.2
LWTT-05		300X250X150	1.0*1.0*1.2
LWTT-06		300X250X200	1.0*1.0*1.2
LWTT-07		300X250X250	1.0*1.0*1.2
LWTT-08		300X300X150	1.0*1.0*1.2
LWTT-09		300X300X200	1.0*1.0*1.2
LWTT-10		300X300X250	1.0*1.0*1.2
LWTT-11		400X300X150	1.0*1.0*1.2
LWTT-12		400X300X200	1.0*1.0*1.2
LWTT-13		400X300X250	1.0*1.0*1.2
LWTT-14		400X300X300	1.0*1.0*1.2
LWTT-15		400X400X150	1.0*1.0*1.2
LWTT-16		400X400X200	1.0*1.0*1.2
LWTT-17		400X400X250	1.0*1.0*1.2
LWTT-18		400X400X300	1.0*1.0*1.2
LWTT-19		500X300X150	1.0*1.0*1.2
LWTT-20		500X300X200	1.0*1.0*1.2
LWTT-21		500X300X250	1.0*1.0*1.2
LWTT-22		500X300X300	1.0*1.0*1.2
LWTT-23		500X400X150	1.0*1.0*1.2
LWTT-24		500X400X200	1.0*1.0*1.2
LWTT-25		500X400X250	1.0*1.0*1.2
LWTT-26		500X400X300	1.0*1.0*1.2
LWTT-27		500X500X150	1.0*1.0*1.2
LWTT-28		500X500X200	1.0*1.0*1.2
LWTT-29		500X500X250	1.0*1.0*1.2
LWTT-30		500X500X300	1.0*1.0*1.2

Model	Product	SIZE(MM) HEIGHT*WIDTH*DEPTH	THICKNESS(MM) DOOR*BODY*MP
LWTT-31		600X400X150	1.2*1.2*1.5
LWTT-32		600X400X200	1.2*1.2*1.5
LWTT-33		600X400X250	1.2*1.2*1.5
LWTT-34		600X400X300	1.2*1.2*1.5
LWTT-35		600X500X150	1.2*1.2*1.5
LWTT-36		600X500X200	1.2*1.2*1.5
LWTT-37		600X500X250	1.2*1.2*1.5
LWTT-38		600X500X300	1.2*1.2*1.5
LWTT-39		600X600X150	1.2*1.2*1.5
LWTT-40		600X600X200	1.2*1.2*1.5
LWTT-41		600X600X250	1.2*1.2*1.5
LWTT-42		600X600X300	1.2*1.2*1.5
LWTT-43		600X600X400	1.2*1.2*1.5
LWTT-44		700X400X200	1.2*1.2*1.5
LWTT-45		700X400X300	1.2*1.2*1.5
LWTT-46		700X500X150	1.2*1.2*1.5
LWTT-47		700X500X200	1.2*1.2*1.5
LWTT-48		700X500X250	1.2*1.2*1.5
LWTT-49		700X500X300	1.2*1.2*1.5
LWTT-50		700X600X200	1.2*1.2*1.5
LWTT-51		700X600X250	1.2*1.2*1.5
LWTT-52		700X600X300	1.2*1.2*1.5

Model	Product	SIZE(MM) HEIGHT*WIDTH*DEPTH	THICKNESS(MM) DOOR*BODY*MP
LWTT-53		800X600X200	1.5*1.5*2.0
LWTT-54		800X600X250	1.5*1.5*2.0
LWTT-55		800X600X300	1.5*1.5*2.0
LWTT-56		800X800X200	1.5*1.5*2.0
LWTT-57		800X800X250	1.5*1.5*2.0
LWTT-58		800X800X300	1.5*1.5*2.0
LWTT-59		1000X600X200	1.5*1.5*2.0
LWTT-60		1000X600X250	1.5*1.5*2.0
LWTT-61		1000X600X300	1.5*1.5*2.0
LWTT-62		1000X700X200	1.5*1.5*2.0
LWTT-63		1000X700X250	1.5*1.5*2.0
LWTT-64		1000X800X200	1.5*1.5*2.0
LWTT-65		1000X800X250	1.5*1.5*2.0
LWTT-66		1000X800X300	1.5*1.5*2.0
LWTT-67		1000X1000X250	1.5*1.5*2.0
LWTT-68		1000X1000X300	1.5*1.5*2.0
LWTT-69		1200X600X300	1.5*1.5*2.0
LWTT-70		1200X800X300	1.5*1.5*2.0
LWTT-71		1200X1000X300	1.5*1.5*2.0
LWTT-72		1400X600X300	1.5*1.5*2.0
LWTT-73		2000X600X300	1.5*1.5*2.0

Features:
1.High grade fireproof PC material panel, high temperature resistance and durable.
2. Easy to install and safety
3. Ergonomics and modern industrial design bring you more soft, smooth feel
4. A good tool for structured cabling. For home and office DIY cabling.
5.Elegant construction, convernient installation, complete specification, safe and reliable.

1. The power Weatherproof Distribution Box and the lighting distribution box are set separately. If they are placed in the same distribution box, the power and lighting circuits are set separately, and the lighting circuit wiring is connected to the upper side of the power switch.

2. The third-level box is the last-level distribution box for power distribution. There is one machine, one gate and one leakage in the box. Each electrical equipment has its own switch. It is strictly forbidden to use one switch to directly control more than two electrical equipment.

3. The purchase of distribution boxes must meet the security inspection quality and qualified products. The purchase of leakage protectors must be products designated by the state or officially approved by relevant departments.

FAQ

Q:Is LWTT waterproof ?

A:yes ,IP65

Q: What is the thickness of LWTT?

A:0.8mm/1.2mm/1.5mm

Q:What is the IP grade of LWHT?

A: IP65

Q:Where can be used for LWHT?

A: It can be used in factories , mansions, residences, shopping centers and so on.

Q: We want to put our logo on products,ok?

A: Yes

Q:We want to visit your factory, where is location ?

 A:Tangshan

Q: Can I have the customized color of steel distribution box?

A: Yes, if your quantity is up to one container.

Q: Can you produce the stainless steel lock for steel enclosure?

A: Yes, we can produce it according to your picture or drawing.

We are the direct factory which manufacturing weatherproof distribution box, we are looking forward to cooperating with you!
