Intriduction

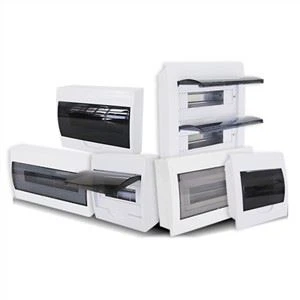

distribution board for din circuit breakers using in high-end market, the overall panel design of this type distribution box is luxury and attractive.
The material is PC which is fire resistant and anti-UV protection. Two terminals(earth copper bar and neutral copper bar) in the box are easy for wiring and routing.


Outline And Installation Dimensions (LWHC)

Product | Model | Din-rail (mm) | Terminal bar | P) L*W*H (mm) | QTY/CTN | (C) W*H*D (mm) |
| LWHC-4 | 75 | 4+4 | 212X107X92 | 30 | 510X355X450 |
| LWHC-6 | 110 | 8+8 | 200X165X100 | 20 | 540X355X430 |
| LWHC-9 | 165 | 12+12 | 200X219X100 | 20 | 540X425X465 |
| LWHC-12 | 215 | 8+8 | 230X273X110 | 20 | 595X485X575 |
| LWHC-18 | 320 | 14+14 | 283X381X130 | 10 | 595X485X405 |
| LWHC-24 | 215*2 | 16*4 | 230X273X110 | 10 | 595X400X570 |
| LWHC-36 | 320*2 | 14*4 | 283X381X130 | 10 | 605X400X790 |
Open mounted distribution box: When the surface plastic Distribution Box is installed on the wall, it should be fixed with split bolts - expansion bolts. The length of the bolts is generally the sum of the embedded depth (75~150mm), the thickness of the box bottom plate, the thickness of the nuts and washers, plus about 5mm of the "outlet margin". For smaller distribution boxes, wood bricks can also be embedded at the installation location (according to the location of the installation holes at the four corners of the distribution box or distribution board), and then wood screws can be used to fix the distribution box or distribution board for din circuit breakers at the wood bricks.
