China Supplier Electric Equipment Surface Electrical dB Boxes Power Distribution Box

We have a comprehensive quality management system and are fully capable of customizing and developing a variety of new Electrical Junction Box PVC, Low Voltage Junction Box, DB Box Electrical according to our customers' needs. We always think about the question on the side of the customers, because you win, we win! We know that talents are the key to our company's development, and actively recruit and train outstanding talents for the company's development efforts.

Introduction

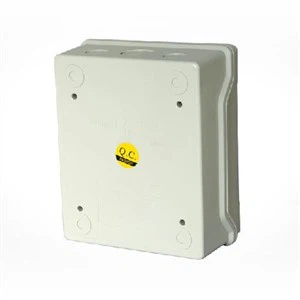

18 way Distribution Box is designed for outdoor use. The ABS body, PC door and rubber seals make it IP65 production rated. Our product has a spacious interior and are suitable for installing large components in boxes, making connections more convenient. It is ideal for both domestic and industrial use.

18 way Distribution Box is well-designed and suitable for various occasions. It has high flame resistance, impact resistance and good insulation, and its optimized design makes it easy to handle and easy to open and close. In addition, our product has a visual window, and the internal data is clear at a glance, making the operation more convenient. Its panel adopts thermal insulation material, which makes it have good flame retardancy and is not easy to fade. The overall quality of this distribution box is excellent, safety is guaranteed, and it is worth choosing.

NUM:18 WAYS

CLASS:Waterproof LWHA type

Technical Specification

• Standard: IEC60439-3

• Approval:CE,RoHS,HF test, IK test,IS09001

• Modules(No.):4;8;12;18;24 .

• Protection Degree:IP65

• MateriaLBox Shell:ABS;Door:PC;Zero bar/earth bar:copper

• Ambient Temperature:-5~+4O°C,max.5O% humidity permitted under mal +40°C

• Storage Temperature:-40~+75°C

• Color Of Base:Gray

• Color Of Door:Transparent

• Mounting Type:Surface

• Fire Resistence:650 °C/30s

Installation requirements of 18 way Distribution Box:

(1) The power distribution system at the construction site should be equipped with indoor main distribution panel and distribution box or outdoor main distribution box and distribution box for graded power supply. The capacity of power distribution devices at all levels should match the actual load. Power and lighting should be set separately.

(2) Production and installation of distribution box and switch box should meet the following requirements: The distribution box is made of iron plate or other fireproof insulation materials, so as to achieve ventilation, heat dissipation, rain proof, fire prevention; All electrical appliances in the box should be installed on metal or other insulating boards (not wood boards) and fastened to the box. The metal bottom plate shall be electrically connected with the box body; ? Normally, the metal shell of the box without electricity, the base, etc., must be connected to zero (ground), and connected through special terminals, and separated from the protection zero wire terminal board. Each electrical connection line shall be insulated with reliable joints and shall not be exposed. ? The incoming and outgoing lines must be rubber-insulated cables. The incoming and outgoing lines should be set at the lower end face of the box body, and a protective ring should be added. Incoming (outgoing) line should be well done, waterproof bend, can not bear external force.

Installation Instructions

Our Factory

OEM And ODM Services

Focusing on the low voltage industry, we are professional manufacture of 18 way distribution box and junction box, which have been certificated with CE,ROHS and IK,HF.Regarding to making the box,we have more competitiveness not only on ZCEBOX products but also on OEM and ODM services.

Cooperation partners

There are several ways to prevent moisture in the distribution box: forced ventilation (exhaust) method, electric heating method, desiccant dehumidification and other methods, but the dehumidification effect is not satisfactory. The specific reasons are as follows:

Forced ventilation/exhaust method Forced ventilation/exhaust method is to install an exhaust fan at the bottom of the box body and an exhaust fan on the top side to accelerate the air circulation inside the box body, so that the air inside the box body is always in a non-saturated state, destroying condensation forming conditions. The disadvantage is that this method needs to be equipped with fans and other equipment, which will generate noise during operation, and at the same time, the internal space of some boxes is limited, which makes it difficult to install.

FAQ

Q:Are you a factory or trading company?

A:We are a factory founded in 2006 and have more than 12 years of experience in international trade.

Q:What’s your main product?

A:Our main products are MCB,RCD, RCBO, ,Distribution box,Junction box and so on.

Q:Do you have a catalogue? Can you send me the catalogue to have a check of all your products?

A:Yes, We have product catalogue. Please contact us on line or send an Email to sending the catalogue.

Q:Can I visit your factory?

A:We have over 6500 square meters of workspace and sincerely welcome your business visit.

Q:Any quality guarantee or after-sales service?

A:All the products have 18 months Guarantee. If any quality complaint , we will give out solution within 2 days.

Q:Where is your comapny located?
A:Our company is located in Tangshan city Hebei province,  it is near to Beijing&Tianjin.

Based on the general trend of international industrial changes, our company provides customers with mature China Supplier Electric Equipment Surface Electrical dB Boxes Power Distribution Box and a complete set of customized solutions according to changes in market application scenarios. We have always maintained the excitement and perception of new things! We are very happy to carry out innovative projects for and with our customers, while accepting the challenges of new technologies. Our company insists on customer-centered principle, always being more elaborate and careful than others, to meet the needs of customers to the maximum.
