27kv Outdoor Sf6 Insulated Isolator with Motorize Operation

As an important manufacturer of Outdoor Distribution Panel Plastic, Circuit Breaker AMP, Electric Distribution Box, relying on professional technical team and strong R&D force, we continue to provide customers with the best products. We look forward to friendly cooperation with friends from around the world, and jointly develop international markets with excellent quality, reasonable prices and good services. Technological innovation is an important way for companies to gain core competitive advantages and survive and develop in an increasingly fierce market. Our company has a professional maintenance team, with a wealth of practical experience, excellent ideas, leading technology to win the praise of customers.

Features Of Circuit Breaker Isolator

1.The handle provides a clear indication of the contact position.

2.Adequate printing of all data on the front provides long-term identification.

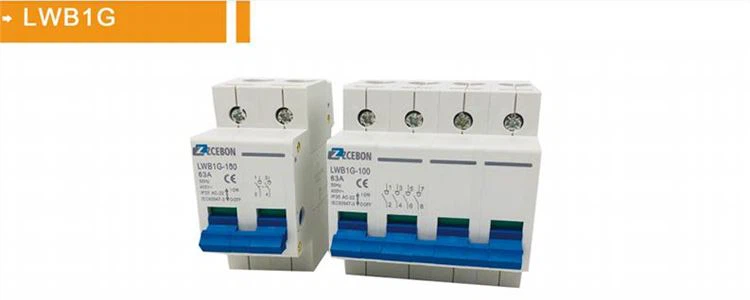

3.Based on the technology of circuit breaker isolator series LWB1G.

Functions

-Making and breaking under load condition.

-Providing safety isolation for terminal distribution system.

-The circuit breaker isolator is used in residential building, non-residential building.

Technical Specifications

Standard: IEC60947-3

Approvals: CE

Rated current ln(A): 32, 63,100

Rated voltage Un (VAC): 230/400V

Rated insulation voltage (VAC): 500

Number of poles: 1,2,3,4

Rated short- time withstand current 20 In: is

Degree of protection: IP20, with connected conductors

Electrical life(times): 10,000 Mechanical life(times): 20,000

Fire resistance according to UL 94: V0 Mounting position: any

Conductor Cross-sections

Solid and stranded (mm2): 0.75-35

Finely stranded with end sleeve (mm2): 0.72-25

Terminal tightening torque (N.M): 2.5-4

Ambient temperature(°C): -25~+45,max 95% humidity

Storage temperature(°C): -40~ +75

Altitude Max (meters): Max 2000

Connection capacity (mm2): 1-25

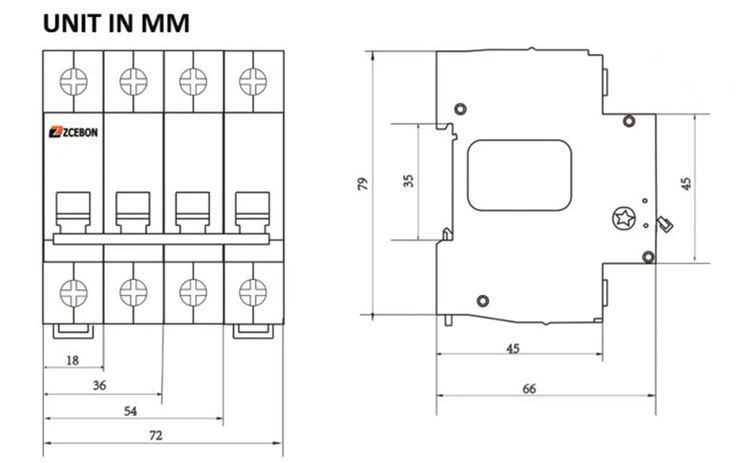

• Outline Dimensions

Cooperation partners

The meaning of circuit breaker 1P and 2P

The Circuit Breaker Isolator that can be seen in the home are generally only 1P and 2P. 1P and 2P are also called 1-level and 2-level. Each level corresponds to two upper and lower terminals, and the width of each level is 17.5 mm (for example, 2P circuit breaker The width of the device is 17.5*2=35mm).

The biggest difference between 1P and 2P is that the 1P circuit breaker can only control the live wire, while the 2P circuit breaker can control the neutral wire and the live wire. That is, when the circuit breaker is disconnected, the neutral and live lines of the 2P circuit breaker are disconnected, but the neutral line of the 1P circuit breaker is still not disconnected.

It should be noted that the 1P circuit breaker with leakage current and the 2P circuit breaker without leakage current are easily confused in appearance, and the connection methods of the two are almost the same. The 1P circuit breaker with leakage current also has 4 terminals, but different ones. Yes, when the 1P circuit breaker is disconnected, although the neutral line is connected to the circuit breaker, the neutral line cannot be disconnected.

FAQ

Q: Why was the delivery delayed?

A:I apologize for our delayed delivery and the inconvenience caused to you.

Q:How is the freight?

A:By sea, air or express.

Q: What is the payment method?

A:Letter of Credit, Collection or T/T.

Q: The company's business scope?

A:The business scope includes plastic parts, plastic packaging and container manufacturing. The main products are junction boxes, distribution boxes, circuit breakers, etc.

Q: Can you show me the product catalog?

A:No problem, this is our company's product catalog.

Q: I feel that the price is still a bit expensive

A:This product has the advantages that other similar products cannot be compared. Our products are widely sold overseas, with strict quality control, and are very popular in the local area.

Q: Why are you more expensive than similar products?

A:Because of our high quality, our price will naturally be higher.

27kv Outdoor Sf6 Insulated Isolator with Motorize Operation focus on practical use, more easy to use, more practical. Truly meet the real needs of the vast majority of customers. In addition to excellent products, we will also provide excellent after-sales service for users to remove all worries. Our company is based on emphasizing reality, doing practical work and seeing actual results.
