Introduction

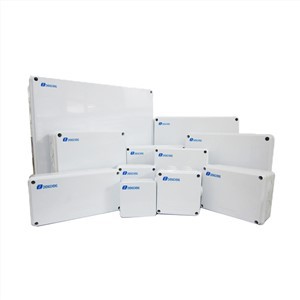

IP65 electrical box is made of materials such as ABS and PS, with elegant external apprearance and firm performance. Cover and bottom are combined by screws. The weight of plastic enclosure is the quarter of iron enclosure. So the finished products can be easily transported and installed. All the products are with anti-corrosion performance and good insulation performance.
We use quenching technology, our Electrical Box has the advantages of beautiful appearance, high strength, no desoldering fracture. CNC automatic processing, pressure and corrosion resistance. Cold rolled steel plate, strong impact resistance, wear resistance, good corrosion resistance. Its whole adopts full-automatic numerical control bending and integrated forming. Thickened material, solid and firm.
Technical Specifications
●Standard:IEC60529
●Approval:CE,RoHS and HF test and IK test
●Protection Degree:IP65/IP55
●Materials:ABS/PS(for PS materials,400X350X120 are not available)
●Ambient Temperature(℃):-5~+40,max.95% humidity
●Storage Temperature(℃):-40~+75
Examples Of Application
Outline And Installation Dimensions
Product | Model(W*H*D) | Holes Quantity/Sizes(mm) | (P)L*W*H(mm) | QTY/CTN | (C)W*H*D(mm) |
| LWBT5050 | 4/25 | 50x50 | 300 | 370x440x460 |
| LWBT8050 | 4/25 | 80x50 | 240 | 445x530x490 |
| LWBT858550 | 7/25 | 85x85x50 | 200 | 710x445x270 |
| LWBT10010070 | 7/25 | 100x100x70 | 100 | 560x560x285 |
| LWBT15015070 | 7/25 | 150x150x70 | 60 | 645x365x400 |
| LWBT15011070 | 10/25 | 150x110x70 | 60 | 630x475x360 |
| LWBT20010070 | 8/25 | 200x100x70 | 60 | 630x420x360 |
| LWBT20015580 | 10/36 | 200x155x80 | 40 | 625x 410x405 |
| LWBT20020080 | 12/36 | 200x200x80 | 40 | 820x420x415 |
| LWBT25520080 | 12/36 | 250x200x80 | 40 | 805x520x405 |
| LWBT300250120 | 12/36 | 300x250x120 | 20 | 630x530x630 |
| LWBT400350120 | 16/36 | 400x350x120 | 10 | 720x415x610 |
Product | Model Holes Quantity/Sizes | Holes Quantity/Sizes | (P)L*W*H | QTY/CTN | (C)W*H*D |
| LWBA5050 | 4/25 | 50x50 | 300 | 375x445x460 |
| LWBA8050 | 4/25 | 80x50 | 240 | 450x535x490 |
| LWBA858550 | 7/25 | 85x85x50 | 200 | 715x450x270 |
| LWBA10010070 | 7/25 | 100x100x70 | 100 | 565x565x285 |
| LWBA15015070 | 7/25 | 150x150x70 | 60 | 630x370x400 |
| LWBA15011070 | 10/25 | 150x110x70 | 60 | 635x480360 |
| LWBA20010070 | 8/25 | 200x100x70 | 60 | 630x425x360 |
| LWBA20015580 | 10/36 | 200x155x80 | 40 | 630x415x405 |
| LWBA20020080 | 12/36 | 200x200x80 | 40 | 825x425x415 |
| LWBA25520080 | 12/36 | 250x200x80 | 40 | 810x525x405 |
| LWBA300250120 | 12/36 | 300x250x120 | 20 | 630x530x630 |
| LWBA400350120 | 16/36 | 400x350x120 | 10 | 720x415x610 |
Our Services
1. Rich experience in designing and producing.
2. Strong designers team. We will make the exactly you want.
3. We are the factory with over 10 years of export experience, OEM manufacturer.
4. Fast delivery time and high quality will be guaranteed for you.
Installing Junction Boxes
When upgrading the wiring for a room, you may find it necessary to tap into a wire to add a branch circuit for a light or outlet. You'll need a junction box if you can't make the connections inside an existing electrical box. You should install the box with the opening facing out from the wall so all the wires inside are accessible. Like any electrical box, it should be installed so that the edge of the opening is flush with the wall. Screw the cover on with machine screws so you can remove it easily.

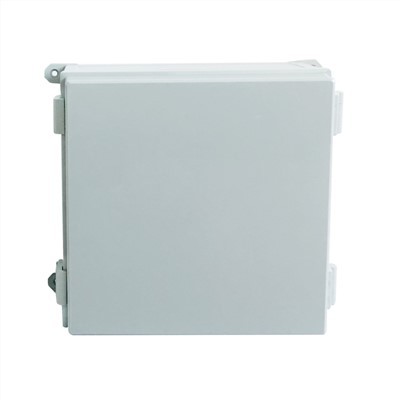

Electrical Enclosure (Junction Box)
We have been a reliable manufacturer and supplier of Electrical Enclosure (Junction Box) in China.
We are working successfully in the industry by offering our complete quality and luxurious Electrical Enclosure (Junction Box). This Electrical Enclosure (Junction Box) is manufactured according to the norms and parameters set by the industry. Electrical Enclosure (Junction Box) provide protection against all types of short circuits because these products are made using excellent quality product, which are purchased from the most reliable vendors in the business. In order to meet the needs of our valued customers, we present these products in various specifications.
FAQ
1.Q:Do you have an export licence?
A:Yes.
2.Q:How do you ensure quality?
A:We provide 100% quality guarantee for our customers.We will be responsible for any quality problem.
3.Q.Can we visit your factory before place the order?
A:Yes,Very welcome that must be nice to set up good relationship for business.
4.Q.Can we be your agent?
Yes, welcome to cooperation with us. We have big promotion in the market now. For the details please contact with our overseas manager.
5.Q: Warranty and return:
1. All of the ip65 electrical box have been tested before ship out.
2.We own the best after-sale service team, if any problem happens, our team will do our best to solve it for you.
6.Q:what is the material of LWHY?
A. ABS/PC.
7.Q:What is the specifications of knock-out holes of LWBA?
A: 2.
8.Q:What is the waterproof grade of LWBA/LWBT?
A: IP55 for less than 100*100, IP65 for more than 100*00.
9.Q:Is there products anti-UV
A: Yes, LWHY and LWHI can be use PC material .
Leave a message to us, if you need ip65 electrical box！
