Introduction
As a very important auxiliary tool, Junction Box plays its irreplaceable role. In daily life, the use of electricity is very common, and to ensure safe use, this box is generally used at the wiring of the line to assist in protection, in order to achieve a better use effect. It is mainly used for the installation of various switches and sockets and wiring panels for other electrical appliances. As a good Junction Box Supplier, our Junction Box can also play the role of connecting wires and transitioning various electrical circuits and protecting the safety of the lines.
Technical Specifications
• Standard:IEC60529
• Approval:CE,RoHS,HF test and IK test
• Protection degree:IP66
• Material:ABS,PC
• Ambient Temperature:-5~+40°C,max.95% humidity
• Storage Temperature:-40~+75°C
Installation Instructions
Outline And Installation Dimensions
Accessories Introduction
| Material: ABS plastic Screw Hole Diameter: 9mm Square Length: 3mm Optional |
 | Material: ABS plastic Size: 50x25x8mm Screw Hole Diameter: 6mm Optional |
| Material: PP,PA Diameter: 12,16,18,20,22,24,25, 27,30,32,36,40,50,63mm IP: 68 Optional |
| Material: galvanized steel, Aluminum Width: 35mm Length: customized Optional |

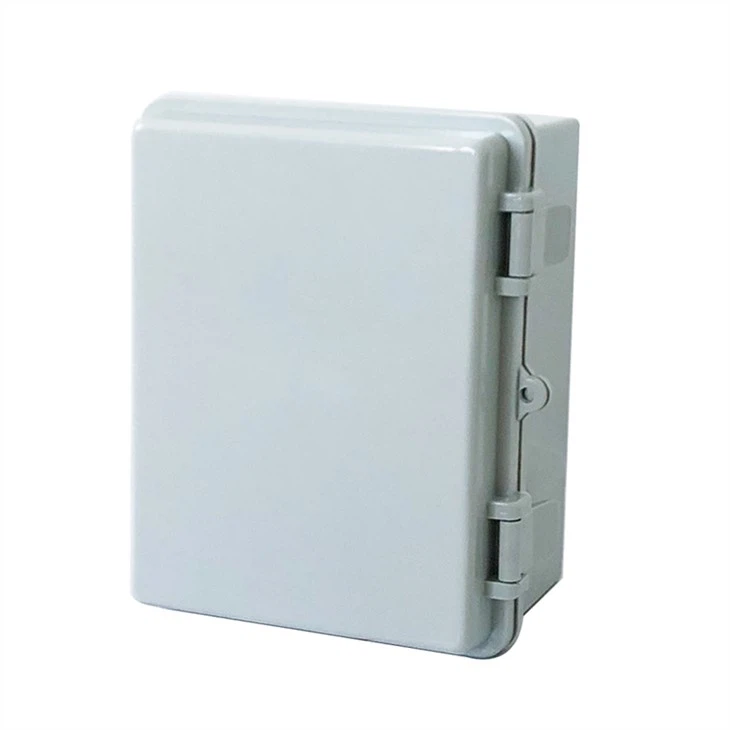

| Waterproof Electrical Junction Box PVC | |||||||
Product | Model(W*H*D) | Plate(mm) | Lock Type | Bracket | (P)L*W*D(mm) | QTY/CTN | (C)W*H*D(mm) |
| LWHY10015070 | 62*115 | Stainless Steel/Plastic | Stainless Steel 60 | 100*150*70 | 60 | 615*335*370 |
| LWHY15015090 | 115*115 | Stainless Steel/Plastic | Stainless Steel 60 | 150*150*90 | 30 | |
| LWHY10020070 | 65*165 | Stainless Steel/Plastic | Stainless Steel | 100*200*70 50 | 50 | 550*410*380 |
| LWHY170220110 | 135*185 | Stainless Steel/Plastic | Stainless Steel | 170*220*110 | 30 | 585*460*580 |
| LWHY190290140 | 155*255 | Stainless Steel/Plastic | Stainless Steel | 190*290*140 | 20 | 595*435*730 |
| LWHY290390160 | 255*355 | Stainless Steel/Plastic | Stainless Steel | 290*390*160 | 6 | 600*400*510 |
| LWHY330330130 | 295*295 | Plastic | Plastic | 330*330*130 10 | 10 | 675*355*685 |
| LWHY200300160 | 165*265 | Plastic | Plastic | 200*300*160 | 12 | 615*465*340 |
| LWHY200300170 | 165*265 | Plastic | Plastic | 200*300*170 | 12 | 610*450*430 |
| LWHY200300180 | 165*265 | Plastic | Plastic | 200*300*180 | 12 | 610*455*560 |
| LWHY300300170 | 265*265 | Plastic | Plastic | 300*300*170 | 6 | 620*335*430 |
| LWHY300300180 | 265*265 | Plastic | Plastic | 300*300*180 | 6 | 620*335*560 |
| LWHY300400170 | 265*365 | Plastic | Plastic | 300*400*170 | 6 | 650*410*530 |
| LWHY300400180 | 265*365 | Plastic | Plastic | 300*400*180 | 6 | 650*410*560 |
| LWHY400500200 | 365*465 | Plastic | Plastic | 400*500*200 3 | 3 | 510*440*630 |
| LWHY400600220 | 365*565 | Plastic | Plastic | 400*600*220 | 3 | 635*440*690 |
| LWHY500600220 | 465*565 | Plastic | Plastic | 500*600*220 | 3 | 635*540*690 |
Our 100% Promise
1. 24 hours online service.
2. We always say FINE to my customer.
3. The above product photos are coming from main production.
4. Thanks and the first cooperation to be expected.
5. Small MOQ.
There are inevitably some small problems in household electricity consumption, sometimes it makes people very anxious. Don't worry. PVC Waterproof Electrical Junction Box PVC manufacturers take you to look at household electricity consumption tips
1, each family must have some necessary electrical appliances, such as electroprobe, screwdriver, pliers, etc., but also must have a variety of specifications for the use of household appliances fuse and fuse.
2, under any circumstances is strictly prohibited to use copper, iron wire instead of fuse.
3, burn off the fuse or leakage switch action, must find out the reason to close the switch power supply.
4, when buying household appliances, you should carefully check the technical parameters of the product manual (such as frequency, voltage, etc.) to meet the local electricity requirements. 5, home power distribution equipment can not meet the capacity requirements of household appliances, should be replaced and transformed, it is strictly prohibited to use.
6, where the requirements of protective grounding or security zero household appliances, should use three-pin plug and three-eye socket, shall not use double foot plug and double eye socket instead, resulting in grounding (or zero) line gap.
Zcebox Waterproof Electrical Junction Box PVC manufacturers to provide you with quality products and professional services, welcome to buy!
