Product Description

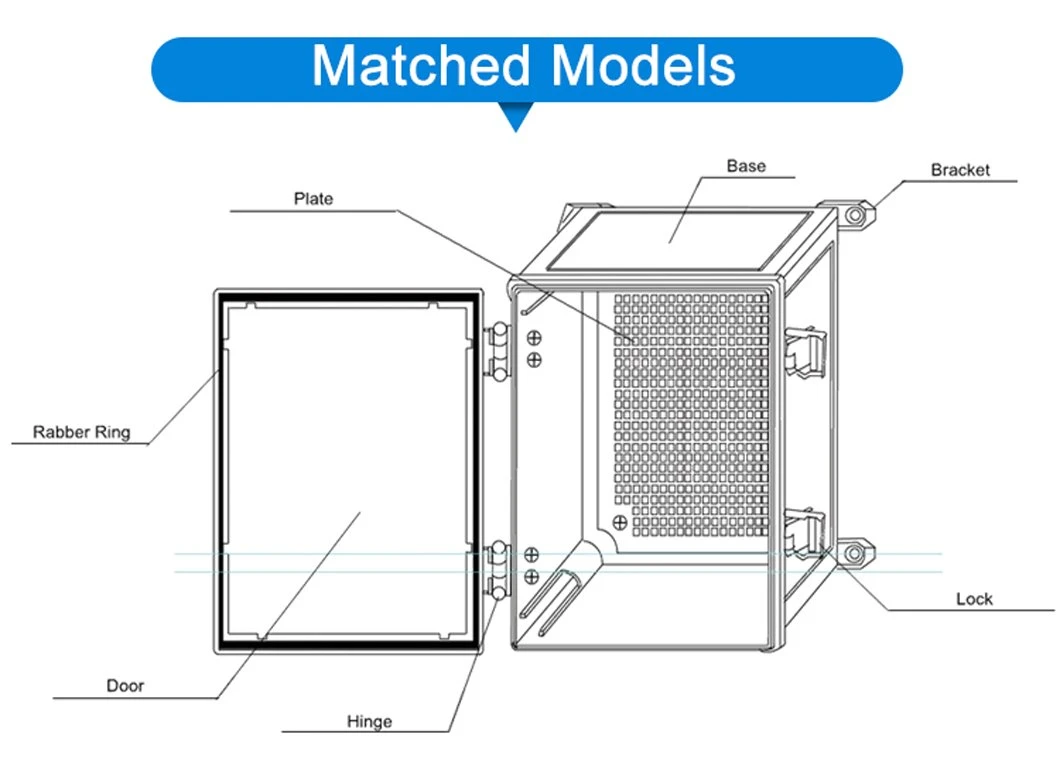

Outdoor Power Junction Box adopts high quality ABS hinge, the connection is close and smooth, the box cover turns over lightly and freely. It is mainly fixed to the designated position with screws directly through the mounting hole at the bottom of the box for installation. The unique snap-on style of this box makes it open, simple and quick to use. Junction Box is suitable for chemical processing, iron and steel smelting, factory site, ship wharf, railway mines and other facilities and environment.
Features
1. Outdoor Power Junction Box is waterproof, leak-proof, safe and secure.
2. Its shell is made of higher flame-retardant and high-waterproof materials, so it has the characteristics of impact resistance, corrosion resistance, and longer service life.
3. This box has good water resistance, good collision resistance, corrosion resistance, UV protection.
4. It is very durable and will not be affected by temperature.
Details
Technical Specifications Standard:IEC60529
Approval:CE,RoHS,HF test and IK test
Protection degree:IP66
Material:ABS,PC
Ambient temperature:-5~+40°C,max.95% humidity
Storage temperature:-40-+75°C

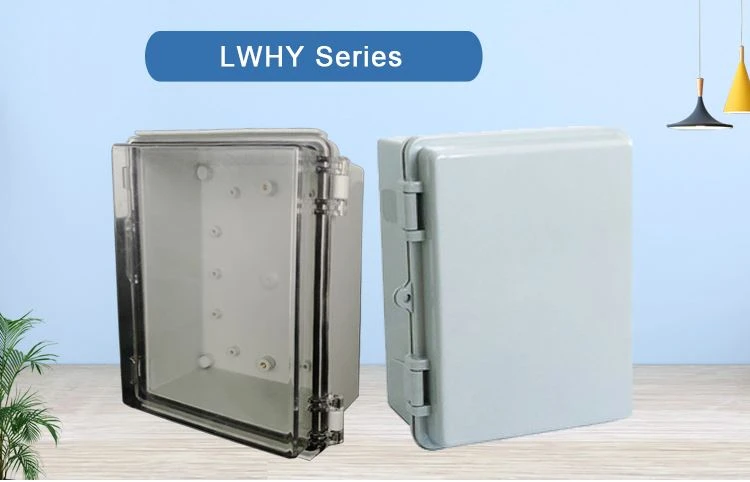

Waterproof DB box LWHT Series | |||||
Model | ABS Plate(mm) | Bracket | (P)W*H*D(mm) | QTY/CTN | (C)W*H*D(mm) |
LWHY10015070 | 65*115 | Stainless Stell | 100*150*70 | 60 | 615*335*370 |
LWHY10020070 | 65*165 | Stainless Stell | 100*200*70 | 60 | 615*440*360 |
LWHY15015090 | 115*115 | Stainless Stell | 150*150*90 | 30 | 465*330*475 |
LWHY170220110 | 135*185 | Stainless Stell | 170*220*110 | 30 | 580*460*580 |
LWHY290390160 | 255*355 | ABS Plastic | 290*390*160 | 6 | 620*410*515 |
LWHY200300150 | 165*265 | ABS Plastic | 200*300*150 | 8 | 610*445*340 |
LWHY200300180 | 165*265 | ABS Plastic | 200*300*180 | 8 | 615*465*385 |
LWHY300300180 | 265*265 | ABS Plastic | 300*300*180 | 6 | 615*340*565 |
LWHY300400180 | 265*365 | ABS Plastic | 300*400*180 | 6 | 660*410*565 |
LWHY400500200 | 365*465 | ABS Plastic | 400*500*200 | 3 | 510*440*630 |
LWHY400600220 | 365*565 | ABS Plastic | 400*600*220 | 3 | 615*425*685 |
Our Service
1. We will prompt reply your e-mail within 24 hours. We can answer all your question in English
2. We will protest your business in your sales area, protect ideas of design and all your private information.
3. You are welcomed to contact us. We will try our best you're your request.
4. OEM/ODM Welcome.
5. When you get the goods, test them, and give me a feedback. If you have any questions about the problem, contact with us, we will offer the solution for you.
6. Protection of your sales area, ideas of design and all your private information.
7. On time delivery.
8. Insist win-win development.
9. All the products must be double checked to ensure the quality before delivery.
10. Welcome to visit our factory and we will alway accompany you.
What are the types of junction boxes?
Increased safety box
The junction construction would be 1.5mm 316 SS,Outdoor Power Junction Box would have a bottom entry with a removable gland plate. The gland plate would be bolted to the box with 316SS bolts., sealed with neoprene gaskets, and fitted with an earthing stud. The incoming cable would be entered to the side of the junction box and the outgoing cable would be from the bottom of the junction box. These boxes would have external mounting lugs. These boxes would have door hinged at two points with neoprene seal fitted all around,
Explosion-proof box
This type of junction box will be created from 316 SS epoxy coated copper-free die-cast aluminum. These boxes would have mostly four mounting lugs, drilled with 10mm fixing holes and an 8 mm external earth lug. Cables would be entered from the bottom. These box lids would have cast hinges integral to the box with the stainless-steel pins.
The PVC junction box is different in material from other products. It lasts for a long time and can also make particularly good conditions. In many aspects, it should be known that its properties and functions are improving rapidly. Many good conditions are also in progress. Multi-faceted implementation, the ability to demonstrate its ability, and the value of its use, after a long time, many good properties can be expressed, and the material of this box is relatively strong, naturally existable The time will be long.
FAQ
Q: Do you have waterproof junction box?
A: Yes, we have IP65 and IP66 junction box.
Q: Do you have box without knockout holes?
A: Yes, please refer to our product LWHI and LWHY
Q: Can you produce the holes on the box?
A: Yes, we can make OEM holes according to your requirement.
Q: Which is the material of the mounting plate of plastic box LWHI and LWHY?
A: It can be ABS or PC material.
Q: I don't need mounting plate. Is it OK?
A: Yes, the mounting plate is optional.
Q: Can you produce holes on this waterproof junction box LWHI and LWHY?
A: Yes,we can make OEM holes according to your drawing.
Q: Do you have hanging bracket for this hinged junction box?
A: Yes, we can supply both stainless steel and plastic brackets for this box.
