Introduction

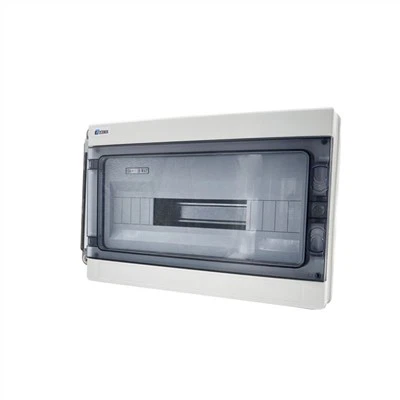

Power Distribution Equipment is a classic power distribution box that can be equipped with various modular electrical appliances to play the role of terminal power distribution. Our product has a variety of installation methods, which can be directly installed and hung on the wall, or can be embedded in the wall for installation. This equipment has a wide range of applications and is suitable for low-voltage distribution networks to supply power to consumers and commercial buildings.
NUM：LWDF-2
CLASS：LWDF&LWDS / LWDFT&LWDST
Technical Specifications
Installation Instructions
mcb low voltage distribution box Accessories Introduction
Din-rail
| ▼ Width: 35mm (standard) ▼ Length: see in table ▼ Material: Iron galvanized zinc ▼ Thickness 1.0mm (customizable) |
Terminal bar
| ▼ Width: 6mm ▼ Height: 8mm ▼ Size: M4*7 ▼ Numbers: see in table ▼ Material: copper/brass |
Adjustable Support
| ▼ Size: suitable for 35mm din rail ▼ Material: ABS/PP ▼ Steps: suitable for 35mm din rail ▼ Product model guide rail is shown in the table below |
Loop Sticker
| ▼Material: PVC ▼Function: mark the power control ▼Usage: adhesive sticker |
Busbar
| ▼Material: brass ▼Type: pin type/fork type ▼Length: customizable |
Product | Model | Din-rail (mm) | Terminal bar | (P)L*W*H (mm) | QTY/CTN | (C)L*W*H (mm) |
| LWDF-2 | -- | — | 65*138*85 200 | 200 | 715*555*440 |
| LWDF-4 | 99 | 3+3 | 135*211*86 30 | 30 | 525*440*470 |
| LWDFT-4 | — | 5 | 110*185*105 30 | 30 | 575*440*480 | |
| LWDF-6 | 132 | 3+3 | 171*211*86 30 | 30 | 530*465*545 |
| LWDFT-6 | -- | 5 | 145*185*105 30 | 30 | 575*440*480 | |
| LWDF-8 | 168 | 4+4 | 209*221*86 20 | 20 | 530*430*475 |
| LWDFT-8 | — | 5 | 180*185*100 20 | 20 | 575*430*480 | |
| LWDF-10 | 204 | 7+3 | 248*221*86 20 | 20 | 490*475*515 |
| LWDFT-10 | — | 9+9 | - 20 | 20 | 575*430*480 | |
| LWDF-12 | 240 | 8+4 | 280*211*86 20 | 20 | 525*465*595 |
| LWDFT-12 | — | 4+4+6 | 250*185*105 20 | 20 | 550*360*470 | |
| LWDF-15 | 296 | 8+7 | 340*221*86 15 | 15 | 550*365*705 |
| LWDFT-15 | — | 9+9 | - 15 | 15 | 570*420*530 | |
| LWDF-18 | 351 | 9+9 | 395*249*95 10 | 10 | 500*420*525 |
| LWDFT-18 | — | 4+4+6 | 360*220*95 10 | 10 | 570*420*530 | |
| LWDF-24 | 240 | 8+4 8+4 | 300*345*95 10 | 10 | 560*370*645 |
| LWDFT-24 | -- | 4+4+6 4+4+6 | 250*315*95 10 | 10 | 570*320*360 | |
| LWDF-36 | 240 | 8+4 8+4 | 300*480*95 5 | 5 | 520*320*515 |
| LWDFT-36 | -- | 4+4+6 4+4+6 | 360*330*100 5 | 5 | 575*435*420 |
Product | Model | Din-rail (mm) | Terminal bar | (P)L*W*H (mm) | QTY/CTN | (C)L*W*H (mm) |
| LWDS-2 | -- | — | 50*130*85 | 200 | 715*555*440 |
| LWDS-4 | 70 | 3+3 | 113*198*95 | 30 | 525*440*470 |
| LWDST-4 | — | 5 | 130*117*100 | 30 | 575*440*480 | |
| LWDS-6 | 108 | 3+3 | 148*198*95 | 30 | 530*465*545 |
| LWDST-6 | -- | 5 | 160*215*100 | 30 | 575*440*480 | |
| LWDS-8 | 144 | 4+4 | 185*198*95 | 20 | 530*430*475 |
| LWDST-8 | — | 5 | 200*215*100 | 20 | 575*430*480 | |
| LWDS-10 | 180 | 7+3 | 219*198*95 | 20 | 490*475*515 |
| LWDFS-10 | — | 9+9 | — | 20 | 575*430*480 | |
| LWDS-12 | 215 | 8+4 | 258*198*95 | 20 | 525*465*595 |
| LWDST-12 | — | 4+4+6 | 235*215*100 | 20 | 550*360*470 | |
| LWDS-15 | 272 | 8+7 | 310*198*95 | 15 | 550*365*705 |
| LWDST-15 | — | 9+9 | — | 15 | 570*420*530 | |
| LWDS-18 | 316 | 9+9 | 361*220*99 | 10 | 500*420*525 |
| LWDST-18 | — | 4+4+6 | 390*240*95 | 10 | 570*420*530 | |
| LWDS-24 | 215 | 8+4 8+4 | 271*326*99 | 10 | 560*370*645 |
| LWDST-24 | -- | 4+4+6 4+4+6 | 270*335*95 | 10 | 570*320*360 | |
| LWDS-36 | 215 | 8+4 8+4 | 267*459*103 | 5 | 520*320*515 |
| LWDST-36 | -- | 4+4+6 4+4+6 | 405*370*100 | 5 | 575*435*420 |
Cooperation partners
Switch with leakage protection function
In household electrical equipment mcb low voltage distribution box, air switch is an indispensable little thing, air switch is acting at the same time to protect the role of small expert, it can monitor the current in the circuit, if the current exceeds the limit will trip, and the function of the fuse before similar.
In life, it is inevitable to configure several high-power household appliances, but if the electricity safety measures are not in place, it may lead to line load overload, there will be tripping problem, in order to protect the full range of family circuits, the two must be used together.
You can choose the air switch with leakage protection function, these switches have overload and short circuit protection function, that is, has realized the integration of the two, you can use this kind of switch as the total control switch of the home line, simple, safe and convenient.
