Introduction
The electrical junction box pvc is made of materials such as ABS and PS, which has an elegant appearance and strong performance. The cover and the bottom are joined together by screws, and the weight of the plastic shell is one-fourth of the iron shell, so the finished product can be easily transported. All products have anti-corrosion properties and good insulation properties.
Technical Specifications
●Standard:IEC60529
●Approval:CE,RoHS and HF test and IK test
●Protection Degree:IP65/IP55
●Materials:ABS/PS(for PS materials,400X350X120 are not available)
●Ambient Temperature(℃):-5~+40,max.95%humidity
●Storage Temperature(℃):-40~+75

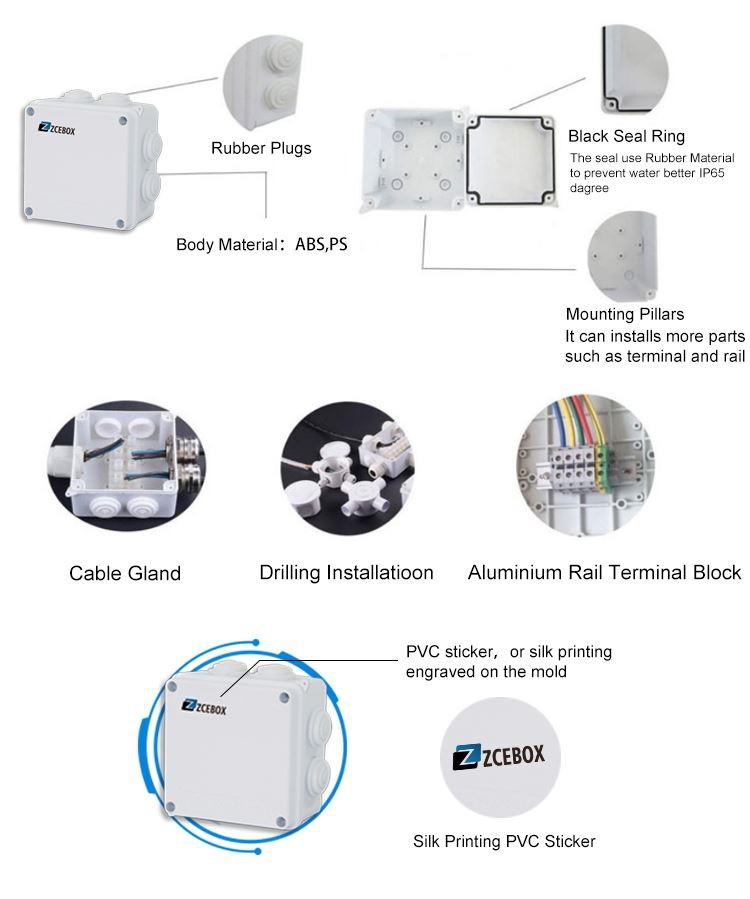

Examples Of Application
Outline And Installation Dimensions
Product | Model(W*H*D) | Holes Quantity/Sizes(mm) | (P)L*W*H(mm) | QTY/CTN | (C)W*H*D(mm) |
| LWBT5050 | 4/25 | 50x50 | 300 | 370x440x460 |
| LWBT8050 | 4/25 | 80x50 | 240 | 445x530x490 |
| LWBT858550 | 7/25 | 85x85x50 | 200 | 710x445x270 |
| LWBT10010070 | 7/25 | 100x100x70 | 100 | 560x560x285 |
| LWBT15015070 | 7/25 | 150x150x70 | 60 | 645x365x400 |
| LWBT15011070 | 10/25 | 150x110x70 | 60 | 630x475x360 |
| LWBT20010070 | 8/25 | 200x100x70 | 60 | 630x420x360 |
| LWBT20015580 | 10/36 | 200x155x80 | 40 | 625x 410x405 |
| LWBT20020080 | 12/36 | 200x200x80 | 40 | 820x420x415 |
| LWBT25520080 | 12/36 | 250x200x80 | 40 | 805x520x405 |
| LWBT300250120 | 12/36 | 300x250x120 | 20 | 630x530x630 |
| LWBT400350120 | 16/36 | 400x350x120 | 10 | 720x415x610 |
When to use plastic junction boxes;
According to strict production specifications, flame retardants are also added to the materials of plastic junction boxes, which are generally used in some places with low requirements, such as general lighting and power lines.
FAQ
1.Q: Can you do our own packaging?
A: Yes, you just provide the package design about the electrical junction box and we will provide what you want. We also have professional designer to help you do the packaging design.
2.Q: When can I get the price?
A: Usually we quote within 8 hours after we get your inquiry.
3.Q: What’s your MOQ?
A: If we have the electrical junction box pvc in stock, it will be no MOQ. If we need to produce, we can discuss the MOQ according to customer’s exact situation.
4.Q:Do you test all your goods before delivery?
A: Yes, We have our own QC team and our products will strictly inspection before delivery.
5Q:Is the sample fee refundable or not?
A: refundable once order confirmed.
6Q:When I can receive quotation and detail information after send the enquiry?
A: Reply will be sent in 24hours.
7.Q:What's the difference between you and other suppliers?
A: We have our own design box with PC/ABS material.
8.Q:Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
